After-Sales Service
The entire unit comes with a 12-month warranty; extended warranty options are available for the control system and the refrigeration unit; remote fault diagnosis, parameter configuration upgrades, and guidance on microbial culture processes are also provided.
HVC-M02 Cow Liver Mushroom Constant Temperature and Humidity Cultivation Container
Product illustration: images/mushroom/HVC-M02.jpg (Dual-Door Mushroom Cultivation Chamber)
I. Product Overview
The HVC-M02 features a dual-end door direct-entry design, allowing operators to push the vehicle in and out directly – making it ideal for fungal cultures with stringent temperature and humidity stability requirements, such as Auricularia auricula. The chamber is designed around a constant-temperature and constant-humidity system, complemented by micro-positive pressure air supply and high-efficiency filtration to minimize the ingress of external contaminants.
Product illustration: images/mushroom/HVC-M02.jpg (Dual-Door Mushroom Cultivation Chamber)
I. Product Overview
The HVC-M02 features a dual-end door direct-entry design, allowing operators to push the vehicle in and out directly – making it ideal for fungal cultures with stringent temperature and humidity stability requirements, such as Auricularia auricula. The chamber is designed around a constant-temperature and constant-humidity system, complemented by micro-positive pressure air supply and high-efficiency filtration to minimize the ingress of external contaminants.
II. Core Competencies
● Dual-door straight-through access: The front and rear dual doors create a straight-through logistics pathway, enhancing harvesting and shelving efficiency.
● Slightly positive pressure clean air supply: Maintaining a slight positive pressure within the chamber reduces the ingress of spores and contaminating microorganisms at the moment the door is opened.
● High humidity control accuracy: Humidity fluctuations are maintained within ±3% RH to prevent water loss in the fruiting bodies.
● Modular fruiting tray system: The layer spacing can be adjusted according to the specifications of the mushroom bags; compatible with both bagging and bottle planting methods.
III. Typical Technical Specifications
project | parameter |
outline dimension | 12000 × 2438 × 2896 mm (40 feet) |
Effective cultivation area | 45–60 m² |
Temperature control range | 18–24 ℃（±0.5 ℃） |
relative humidity | 85%–90% RH（±3%） |
CO₂ concentration | 800–1500 ppm |
rate of ventilation | 4–8 times per hour (adjustable) |
installed power | 10–14 kW |
source | 380 V / 50 Hz Three-phase |
IV. System Configuration
Dual-end door assembly and sealing structure; integrated constant-temperature and constant-humidity unit; primary and medium-efficiency filtration air supply system; ultrasonic humidification system; adjustable shelving mushroom cultivation system; floor-washing drainage ditch; intelligent control cabinet and data recording module.
V. Applicable Varieties
Edible mushrooms such as Tricholoma and美味 Tricholoma – which are either mycorrhizal or require a stable warm and humid environment – can also serve as alternative cultivation chambers for other mesophilic mushrooms.
VI.适用场景
Mid-to-high-end edible fungi production facilities, export-oriented mushroom production bases, and supporting mushroom cultivation houses for the under-forest economy.
VII. Delivery and Installation
The entire unit is shipped from the factory; upon on-site hoisting and installation, power connection, commissioning, and trial operation shall be completed within 3–5 working days. Upon delivery, operating procedures and maintenance manuals shall be provided simultaneously.
VIII. After-Sales Service
12-month comprehensive warranty; includes annual maintenance, filter replacement, and remote operational and maintenance support.
HVC-M03 Matsutake Low-Temperature Bionic Cultivation Container

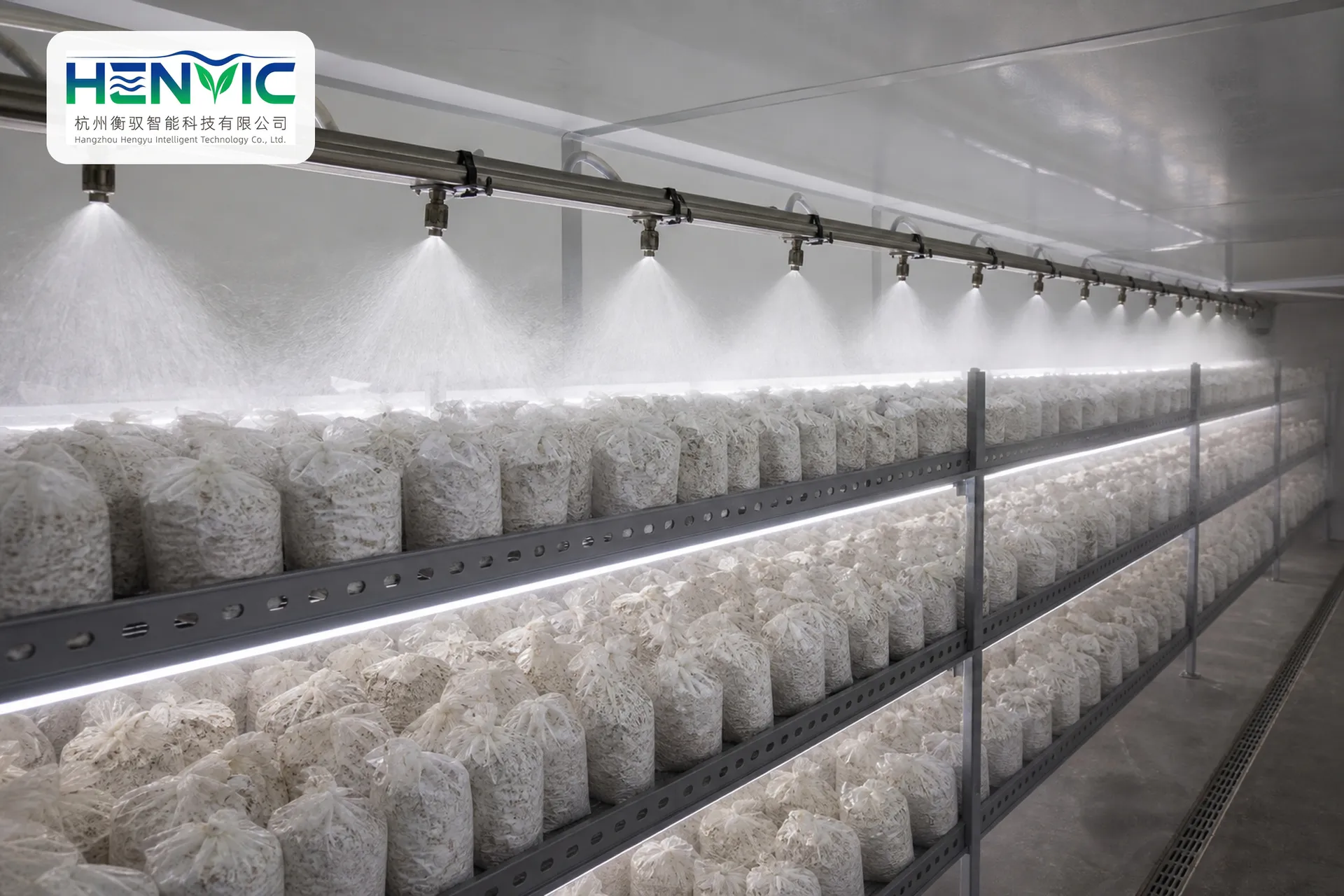

Product image: images/mushroom/HVC-M03.jpg (Panoramic view of the cultivation channels inside the cabinet)
I. Product Overview
The HVC-M03 is designed to meet the bionic cultivation requirements for rare, low-temperature fungal species such as Matsutake; it simulates the cool, humid microclimate typical of high-altitude forest understory environments using a low-temperature unit, zoned air distribution systems, and spectrally adjustable light sources. The chamber features a mid-aisle, dual-sided, multi-layer shelving layout, facilitating zoned management and batch-based fruiting.
II. Core Competencies
● Wide-range low-temperature capability: enables long-term stable operation within the 12–20°C temperature range, suitable for cool-climate bacterial strains.
● Spectral tunability: The blue-to-white light ratio is programmable, balancing mycelial growth with fruiting body morphology.
● Bilateral shelving aisle: Designed for single-person access, featuring a short material handling route and high operational efficiency.
● Excellent environmental uniformity: Multi-point temperature and humidity probes control the air distribution system, ensuring that the temperature difference within the chamber is ≤1.5°C.
III. Typical Technical Specifications
project | parameter |
outline dimension | 12000 × 2438 × 2896 mm (40 feet) |
Effective cultivation area | 50–65 m² (two-sided, four-layer) |
Temperature control range | 12–20 ℃（±0.5 ℃） |
relative humidity | 80%–92% RH |
beam | 0–500 lux, adjustable spectrum |
Box temperature difference | ≤1.5 ℃ |
installed power | 12–16 kW |
source | 380 V / 50 Hz Three-phase |
IV. System Configuration
Low-temperature variable-frequency drive unit; dual-sided shelving for medium-sized spaces; ultrasonic atomization humidification system; programmable LED spectral light strip; multi-point environmental sensing network; fresh air heat exchange module; PLC control system.
V. Applicable Varieties
Bionically cultivated Matsutake and other cool-climate mycorrhizal fungi, as well as rare mushroom species that require low-temperature stimulation.
VI.适用场景
High-value rare fungal species R&D and pilot-scale production base; ecological agriculture demonstration park; and supporting facilities for under-forest bionic cultivation.
VII. Delivery and Installation
After factory pre-installation is completed, the equipment is transported in full containers; on-site hoisting, power connection, and parameter calibration will take approximately 5 working days; we can also provide joint commissioning for strain compatibility and cultivation process optimization.
VIII. After-Sales Service
12-month overall warranty; includes process parameter package updates, remote operation and maintenance services, and on-site inspection services.
