HVC-M01 Morel Mushroom Bionic Cultivation Container
I. Product Overview

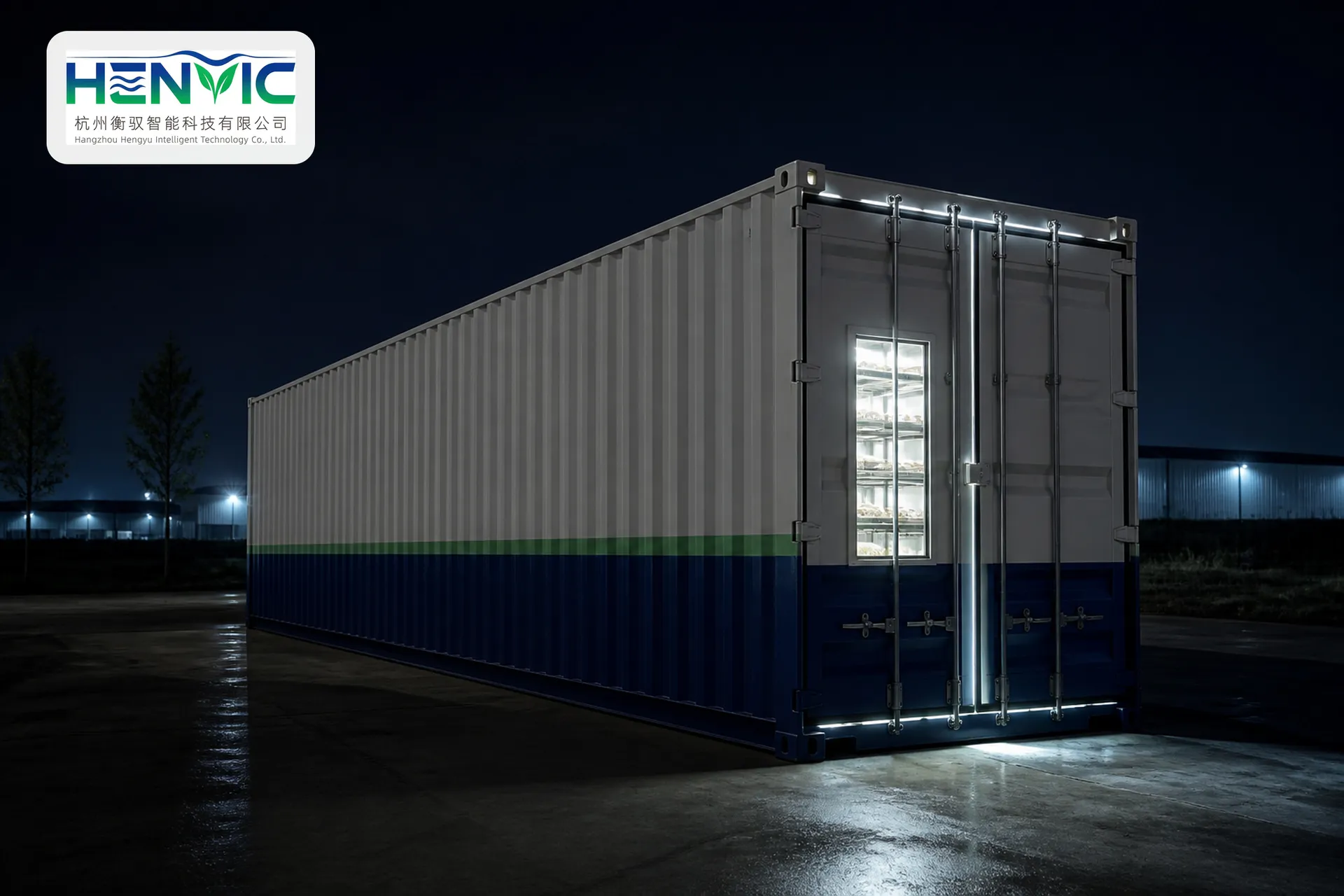

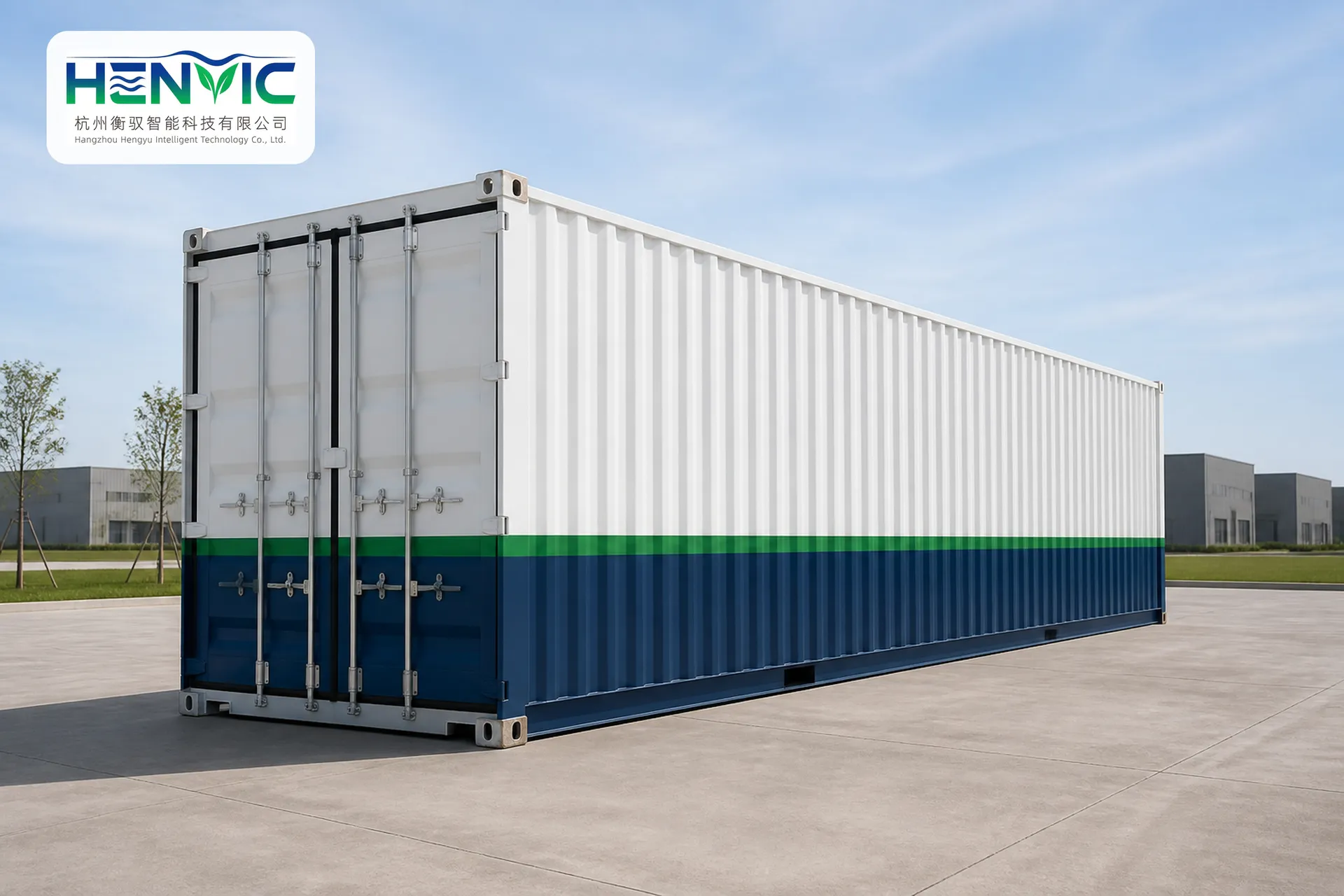

The HVC-M01 system utilizes a standard 40-foot ocean-going container as its carrier; through insulated enclosure design, multi-zone environmental simulation, and light regulation, it creates the stable "low temperature – high humidity – low light – micro-ventilation" environment required for the bionic cultivation of morels. Before shipment, the piping, electrical, and control systems are pre-installed throughout the entire container; upon arrival at the site, only leveling the floor and connecting the water and power supplies are required before the system can be put into operation.
II. Core Competencies
Time-based temperature curve: Programmable day-night temperature variation and low-temperature stimulation phase, tailored to meet the distinct requirements of flower bud induction and fruiting body development.
High humidity without condensation: An interior surface anti-condensation design reduces the risk of water stains and the growth of harmful microorganisms on the fruiting bodies.
Independent zoning: Each container can be divided into 2–4 separate climate zones, facilitating batch sowing and staggered fruiting.
● Comprehensive parameter logging: temperature, humidity, CO₂, and light intensity data are stored locally and support remote viewing.
● III. Typical Technical Specifications
● project
● parameter
三、典型技术参数
outline dimension | 12000 × 2438 × 2896 mm (40 feet) |
Effective cultivation area | 45–60 m² (multi-tier shelving) |
Temperature control range | 8–18 ℃（±0.5 ℃） |
relative humidity | 8–18 ℃（±0.5 ℃） |
relative humidity | 85%–95% RH |
CO₂ concentration | 600–1200 ppm (adjustable) |
intensity of illumination | 0–300 lux adjustable (for mushroom cultivation in low-light conditions) |
installed power | 12–15 kW |
source | 380 V / 50 Hz Three-phase |
IV. System Configuration

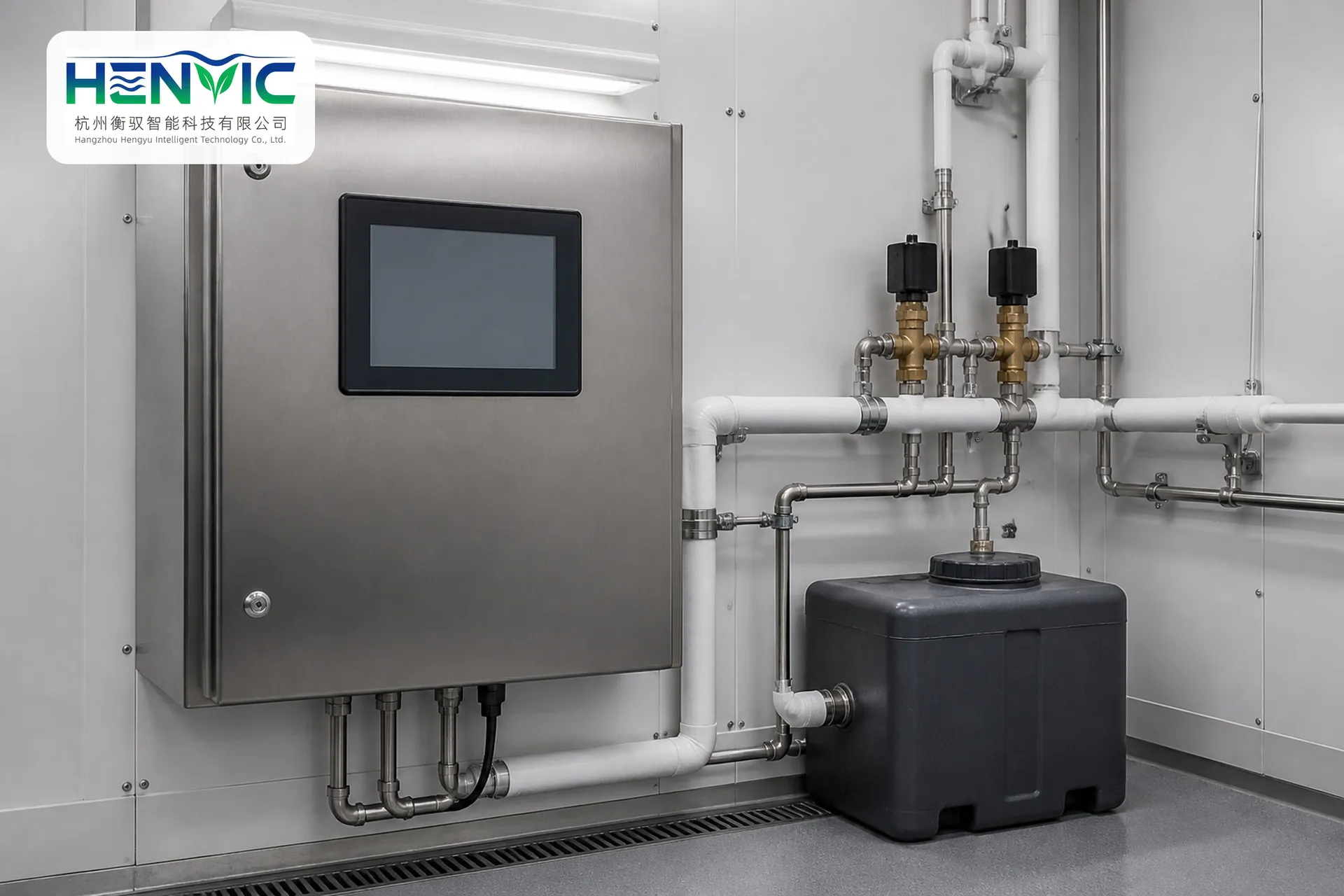

Insulated building envelope system; integrated variable-frequency cooling and heating unit; ultrasonic atomization humidification system; fresh air and CO₂ regulation system; adjustable LED mushroom cultivation light strips; multi-layer stainless steel mushroom cultivation racks; water and fertilizer/water supply and drainage piping system; PLC touchscreen control cabinet.
V. Applicable Varieties
Morels (e.g., Tiling Morel, Liumei Morel, etc.) and other rare edible fungi that require cultivation under low-temperature, high-humidity conditions.
